Visualization Software
The software visualizes computation results, cartographic information and others, which is an effective tool to monitor various phenomena.
Nagare Series – standard
Clef

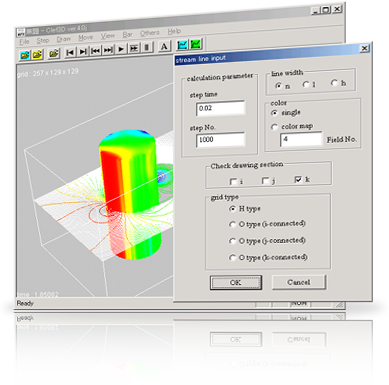

Clef is a simple and intuitive visualization tool for science and technology calculation. Combination with all-purpose animation tool makes it possible for a user to make animations of analysis results. Clef is optimized for Nagare, our fluid analysis software, however, loadable data format is disclosed, which means it has broad utility for various area such as geographic or magnetic field analysis.
Specifications
| Coordinate system | structured grid, and, Cartesian and generalized coordinate system |
| Presentation | computational grid, shading, isogram, equivalent face, velocity vector, streamline, particle path, coordinate axis, flame, object surface rendering, volume rendering |
| Projection transform | perspective projection, orthogonal projection |
| Transition lattice | supported |
| display 2D graph | BMP，PPM，MELT，Postscript，NVS, et al. |
| Output image file | set time steps, average at any time steps, data output interval, display color bar, others |
| Other functions | vorticity calculation/display, move (rotate, scaling, translate), view transformation, set transmittance, modify color mapping, comments, save setting condition, et al. |
■ Loadable data format
Clef loads 2 kinds of binary data files: grid data file, and field data file which contains physical data of calculation.
Grid data is structured grid, which is employed in finite difference method, and it is adapted both to Cartesian and generalized coordinate system,
though non-structured grid is not supported.
Field file is physical quantity which is given to each lattice point recorded in grid data file,
such as velocity in x, y and z direction, pressure, density, temperature and vorticity.
For data format, please contact our customer center.
Licensing and Support
| Product | Clef（Visualization software） |
| License | 1user/node/year |
| License price※ | 3D：\330,000 ※Nagare series - standard |
| License renewal | 3D：\82,500（on demand） |
| Support | Online support during term of agreement |
| Requirement | Hardware：32bit，64bit computer（Pentium，Xeon，Opteron，Alpha, others） OS：Windows |
| Others | For educational institute, a laboratory may be licensed with a site licensing contract. Besides, notification that “iCFD visualization software Clef is used” in a presented paper to send it to iCFD may renew the license for free. |
Clef is developed in IPA "創造的ソフトウェア育成事業" project.
Tax is included．As of 10/1/2019
Visualization software compatible with non-structured grid
GSV
GSV is compatible with non-structured grid as well.
Specifications
| Coordinate system | Direct-equally-spaced grid and structured/non-structured grid |
| Presentation | Contour, equivalent face, vector, streamline, simple volume rendering, particle path, et al. |
Licensing and Support
| Product | GSV（visualization software for non-structured grid） |
| License | 1CPU/year |
| License price | \330,000 |
| Support | Online support during term of agreement |
| Requirement | Hardware：32bit，64bit computer（Pentium，Xeon，Opteron, others） OS：Windows |
Tax is inclueded. As of 10/1/2019
※Contents and price listed in this page are subject to change without prior notice.
